AMD FirePro™ W9100 workstation graphics cards are designed for the next generation of 4K workstations. With industry leading graphics, compute power and ultra-high resolution multi-display capabilities, Video, Design, and Engineering professionals can work at a whole new level of detail, speed, responsiveness, and creativity.
Unprecedented Memory Performance
AMD FirePro™ W9100 workstation graphics is the first and only graphics card to offer up to 16 GB of GPU memory. It features a 512-bit memory interface and 320 GB/s bandwidth. With massive memory performance at your fingertips, you can load entire datasets or large 4K files into internal memory. With DirectGMA support, direct access to the memory helps ensure low latency transfers to and from the GPU.
Ultimate 4K Multi-display Workflows

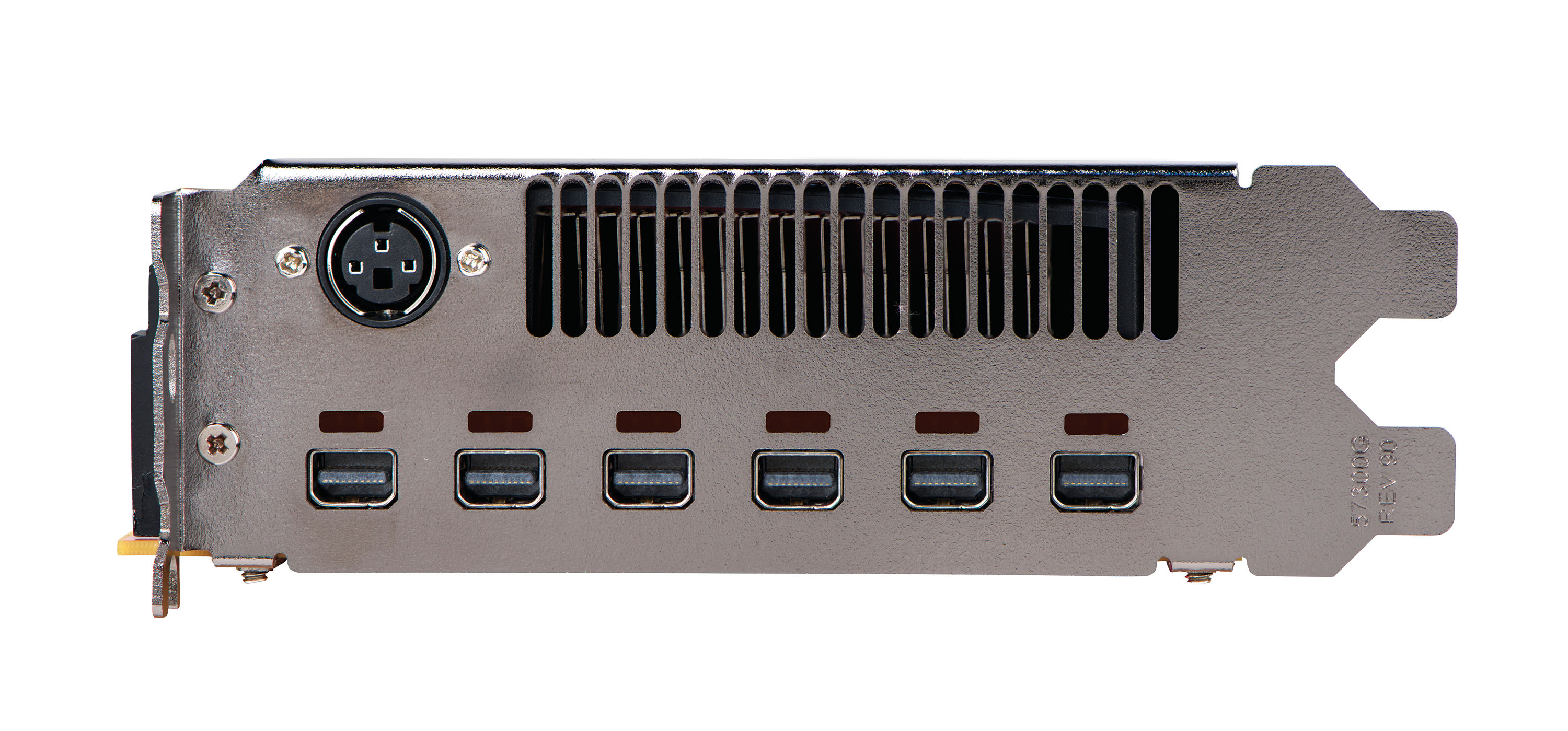

With the ability to support up to six 4K displays via six Mini DisplayPort outputs, the AMD FirePro W9100 graphics card is the ideal single-GPU solution for the next generation of ultra-high resolution visualization environments. The AMD FirePro W9100 graphics card also supports 10-bit color and low latency connectivity via DirectGMA to several third-party SDI Video I/O devices.
Powered by OpenCL™
AMD FirePro W9100 graphics cards are designed to support OpenCL 2.0.4 Tap into the parallel computing power of its GPU and get up to 5.24 TFLOPS of computational power to accelerate compute-intensive tasks.
Scope of delivery:
• AMD FirePro W9100 16GB
This card is individually packaged in our high-quality, padded brown-box.
A sticker on the outside shows the model designation and serial number as a scannable barcode.
Technical data
AI answer from the data sheet · no guarantee · for binding advice contact us at +49 (8025) 9930-0
Graphics processor
GPU / Chip Family
Hawaii
GPU Clock
930 MHz
Single-precision performance (FP32)
5,238 TFLOPS
Memory
ECC support
Ja
Connectors & displays
Sync: Genlock / Framelock
Ja
Form factor & power
Cooling design
Aktiv (Radiallüfter)
Software & interfaces
3D (DirectX, OpenCL, OpenGL, Vulkan)
Ja
AMD CrossFirePRO support
Ja
DirectX
12.0
OpenCL
3.0
OpenGL
4.6
Shader Model
6.0
Vulkan
1.3
Weitere Angaben
3D Stereo output
Ja
Bandwith
320 GB/s
Bus Interface
PCI-Express 3.0 x16
FP64 (Double Precision Performance)
2,62 TFLOPS
Memory Interface Connection
512 bit
Number of Shading Units
2816
Power Consumption
275 Watt
RAM Clock
1250 MHz
RAM Size
16 GB
RAM Type
GDDR5
Screens per card (native connections)
6
Slot Width
Full Size ATX / Dual-Slot
max. resolution
4.096 x 2.560 Px @ 60Hz
mini-DisplayPort (native conenction without adapters)
